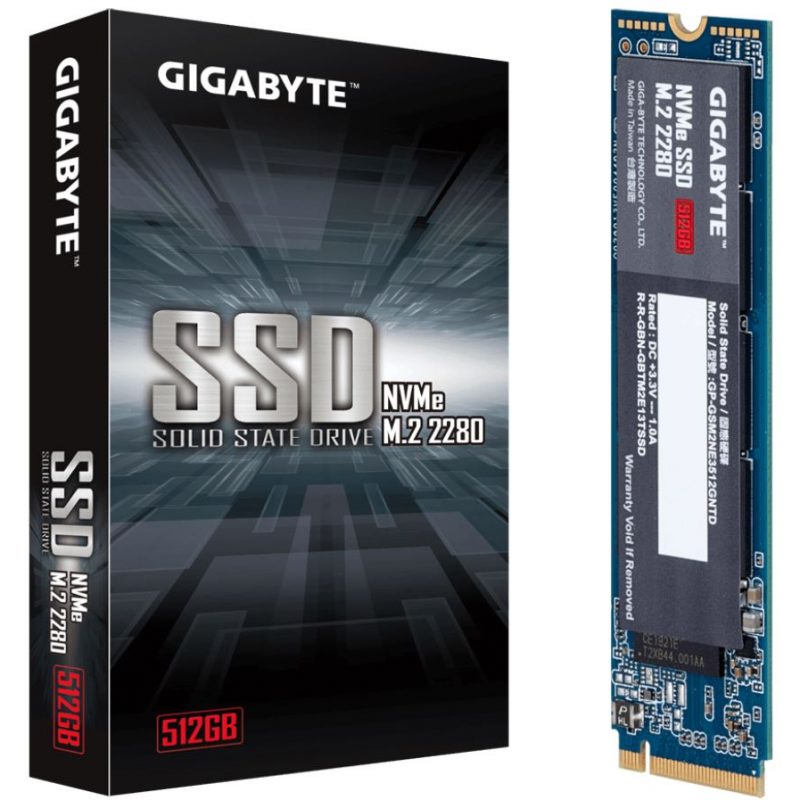

Form Factor: M.2 2280
Interface: PCI-Express 3.0 x4, NVMe 1.3
Total Capacity: 512GB*
Warranty: Limited 5-year or 800TBW
Sequential Read Speed : up to 1700 MB/s**
Sequential Write speed : up to 1550 MB/s**
HMB (Host Memory Buffer) supported
TRIM & S.M.A.R.T supported
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.
Interface PCI-Express 3.0 x4, NVMe 1.3
Form Factor M.2 2280
Total Capacity 512GB
Warranty Limited 5-year or 800TBW
NAND NAND Flash
External DDR Cache N/A
Sequential Read speed Up to 1700 MB/s
Sequential Write speed Up to 1550 MB/s
Random Read IOPS Up to 270K
Random Write IOPS Up to 340K
Dimension (W x H x L) 80 x 22 x 2.3 mm
Mean time between failure (MTBF) 1.5M hours
Power Consumption (Active) Avg. read : 3.3W ; Write : 2.8W
Power Consumption (Idle) 1.8mw
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C
